Product information

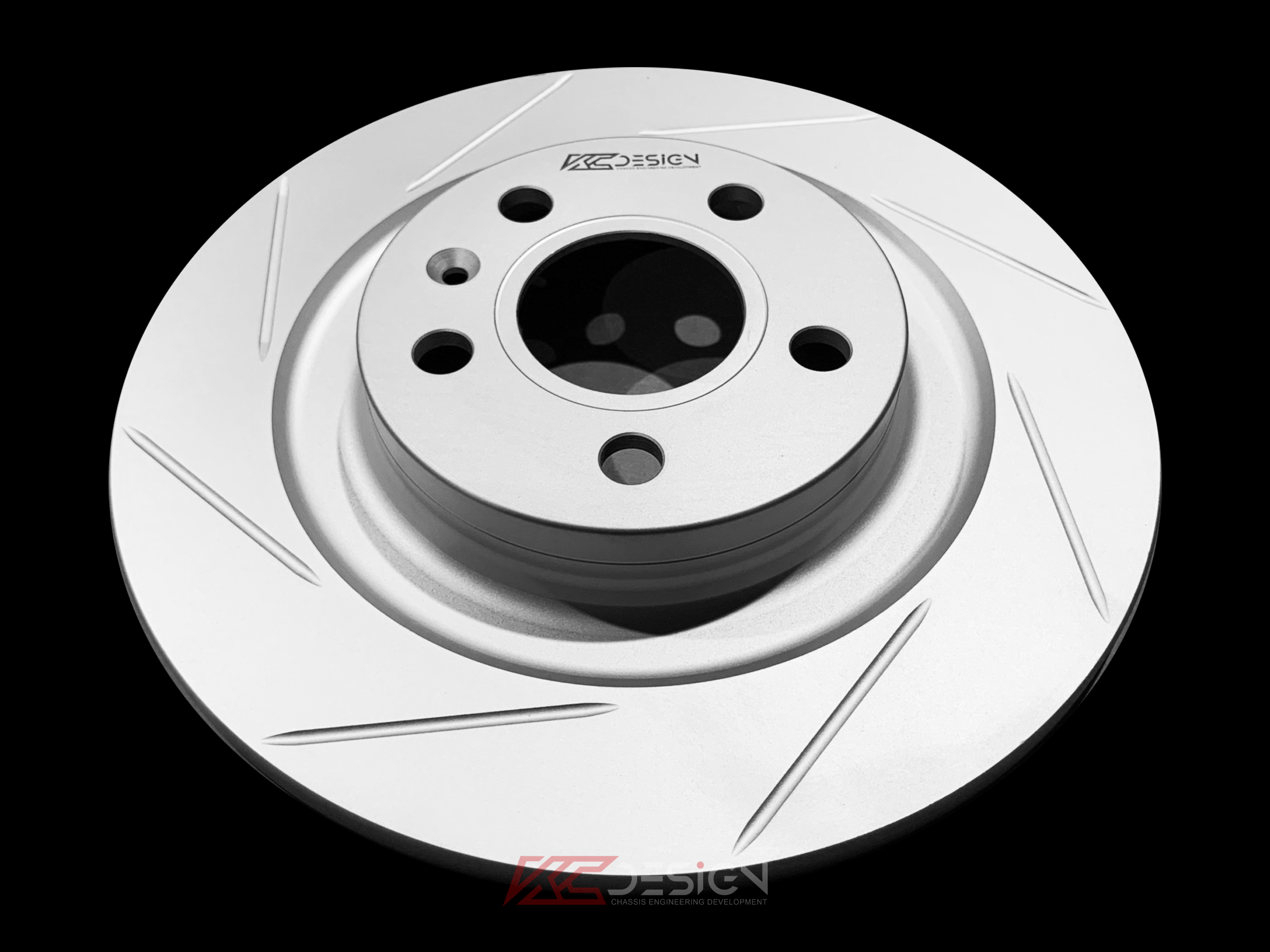

KCDESIGN Brake System - Brake disc.
Diameter:302mm
Thickness:12mm
Specifications:High Carbon Disc (HC)
Anti-rust grade: Dacrotizing Coating
Unit per box:2
---
WIDE VARIETY OF DISC TYPES ARE AVAILABLE
The disc fixation methods are divided into five main categories: fixed, semi-floating, T-type floating, and H-type floating. Each type of combination has its own range of applications. We will provide the best configuration for our customers, and design changes can also be made according to user requirements.
Sizes range from 286 to 440mm, and thicknesses from T8 to T38 are customizable. The disc patterns are fully customizable, with at least 30 different pattern arrangements available. We have chosen six main patterns, but custom patterns are also available upon request.
Customized disc rotor adjustment requirements
The discs are exclusively provided by KCDesign's dedicated disc casting factory, designed and manufactured using a special high-carbon steel quenching plate material with a hardness ranging from HB170 to HB180, suitable for users with various needs.
